Twin 400 Slitter/Scorer

Need More Information?

Overview Features

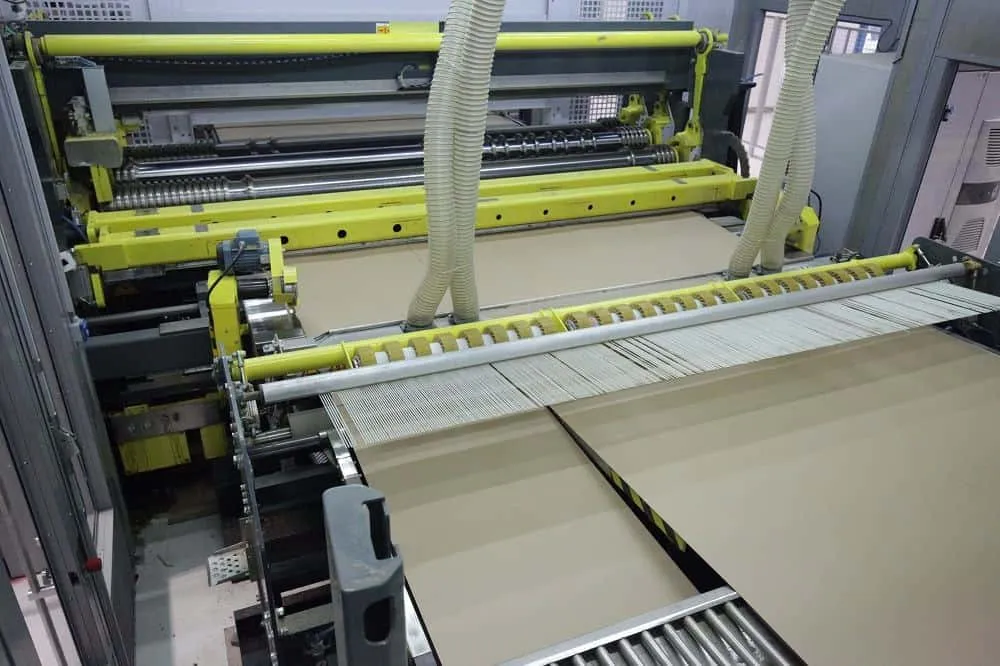

The Twin 400 Slitter/Scorer is a high-speed machine offering flexibility in configuration, installation, machine features, and speeds up to 1500 ft/min.

This machine utilizes Fosber’s advanced Syncro automatic control, “No-Gap” order change, high-speed robotic setup, oil-free slitting, and individual indexing blades. Order changes “plunge” from above or below the board line are available based on customer’s requirements. Slit quality is guaranteed with adjustable blade depth and laser validation system.

The Twin 400 provides maximum options for your current needs and allows the most flexibility for future modifications or changes to your corrugator.

Width: 98″ or 110″
Speed: 1500 ft/min

Allen-Bradley Electronics
Compact Design
Intelligent Guard Monitoring
Oil-Free Blades
“Plunge” Style Order Change – Above or Below Board Line
Individual Indexing Slitter Blades for True “No-Gap” Order Change
Blades can be Individually Adjusted and Disabled
Fast Robotic Positioning (Optional 5 Robot)
Slitter Heads – Minimum Distance 5.5″
Interlocking Scores – Minimum Distance 1.57″
Time for Order Setup: 15-20 Seconds (Average)
Time for Order Change: 0.3 Seconds
